HD U-BOLT (F)
HD U-BOLT (F) SPECIAL
HD U-BOLT (R)
91A U-BOLT (R)
HD 8.5T U-BOLT (R)
HD 9.5T U-BOLT (R)
HD POWERTEC U-BOLT (R)
SL U-BOLT (F)
SL U-BOLT (R) SPECIAL
HD 23T U-BOLT (F)
HD 23T U-BOLT (F) SPECIAL
HD 5T U-BOLT (F)
HD 5T U-BOLT (F) SPECIAL
5T U-BOLT (R)
5T U-BOLT (R) SPECIAL
5T DECK U-BOLT
MIGHTY U-BOLT (F)
MIGHTY U-BOLT (R)
E-MIGHTY U-BOLT (F)
E-MIGHTY U-BOLT (R)
E-MIGHTY NEW U-BOLT (F)
E-MIGHTY NEW U-BOLT (R)
MIGHTY DECK U-BOLT
MIGHTY DECK U-BOLT
MIGHTY2 NEW U-BOLT (R)
PORTER U-BOLT (R)
PORTER2 U-BOLT (R)
LIBERO U-BOLT (R)
HD 3T U-BOLT (F)
HD 3T U-BOLT (R)
GRACE U-BOLT (R)
520 U-BOLT (F)
520 U-BOLT (F) SPECIAL
520 U-BOLT (R) SPECIAL
HD CHASSIS U-BOLT (R)
AEROTOWN U-BOLT (F)
AEROTOWN U-BOLT (F) SPECIAL
AEROTOWN U-BOLT (R)
AEROTOWN U-BOLT (R) SPECIAL
HD 24T TRAGO U-BOLT (F) SPECIAL
HD 24T TRAGO U-BOLT (R) SPECIAL
XCIENT 15T U-BOLT (F) SPECIAL
XCIENT 27T U-BOLT (F) SPECIAL
MEGA 5T NEW U-BOLT (F)
3AXLES 5T U-BOLT SPECIAL
MEGA 3AXLES 5T U-BOLT SPECIAL
MEGA 7T U-BOLT (R) SPECIAL
STAREX U-BOLT
HD DECK STUD BOLT
HD DECK STUD BOLT SPECIAL
POWERTEC 3AXLES U-BOLT (R) SPECIAL
EG 8T U-BOLT (R) SPECIAL
u-bolt
hyundai
model : HD U-BOLT (F)
no.
- 1-001
- 1-001-1
- 1-002
- 1-003
- 1-004
- 1-005
DIMENSIONS
- Φ20×92×8"
- Φ20×92×8.5"
- Φ20×92×9"
- Φ20×92×10"
- Φ20×92×11"
- Φ20×92×12"
REMARK
- GRANTO
u-bolt
hyundai
model : HD U-BOLT (F) SPECIAL
no.
- 1-006
- 1-007
- 1-008
- 1-009
- 1-010
- 1-010
- 1-010-1
DIMENSIONS
- Φ20×92×8"
- Φ20×92×8.5"
- Φ20×92×9"
- Φ20×92×10"
- Φ20×92×11"
- Φ20×92×12"
- Φ20×92×13"
REMARK
u-bolt
hyundai
model : HD U-BOLT (R)
no.
- 1-011
- 1-012
- 1-014-1
- 1-014-2
- 1-014-3
- 1-014-4
- 1-014-5
DIMENSIONS
- Φ27×93×14"
- Φ27×93×15"
- Φ27×93×400
- Φ27×93×420
- Φ27×93×430
- Φ27×93×440
- Φ27×93×450
REMARK
- 55225-75801
u-bolt
hyundai
model : 91A U-BOLT (R)
no.
- 1-013
- 1-015-1
- 1-015-2
DIMENSIONS
- Φ27×93×14.5"
- Φ27×93×340
- Φ27×93×350
REMARK
- 370mm
u-bolt
hyundai
model : HD 8.5T U-BOLT (R)
no.
- 1-016
- 1-017
- 1-017-6
- 1-017-2
- 1-017-5
- 1-017-7
- 1-017-3
DIMENSIONS
- Φ24×92×19"
- Φ24×92×20"
- Φ24×92×21"
- Φ24×92×21.5"
- Φ24×92×22"
- Φ24×92×23"
- Φ24×92×23.5"
REMARK
u-bolt
hyundai
model : HD 9.5T U-BOLT (R)
no.
- 1-018-2
- 1-018
- 1-019-3
DIMENSIONS
- Φ27×93×12"
- Φ27×93×13"
- Φ27×93×15.5"
REMARK
u-bolt
hyundai
model :POWERTEC U-BOLT (R)
no.
- 1-018-2
- 1-019-3
DIMENSIONS
- Φ27×93×12"
- Φ27×93×15.5"
REMARK
u-bolt
hyundai
model :SL U-BOLT (F)
no.
- 1-019-3
- 1-019-1
- 1-019-4
DIMENSIONS
- Φ22×92×11"
- Φ22×92×12"
- Φ22×92×13"
REMARK
u-bolt
hyundai
model :SL U-BOLT (R) SPECIAL
no.
- 1-019
- 1-019-2
DIMENSIONS
- Φ22×92×11"
- Φ22×92×12"
REMARK
u-bolt
hyundai
model :HD 23T U-BOLT (F)
no.
- 1-019-3
- 1-019-1
- 1-019-4
DIMENSIONS
- Φ22×92×11"
- Φ22×92×12"
- Φ22×92×13"
REMARK
u-bolt
hyundai
model :HD 23T U-BOLT (F) SPECIAL
no.
- 1-019
- 1-019-2
DIMENSIONS
- Φ22×92×11"
- Φ22×92×12"
REMARK
u-bolt
hyundai
model :HD 5T U-BOLT (F)
no.
- 1-020-1
- 1-021
- 1-020-3
DIMENSIONS
- Φ15×72×5"
- Φ15×72×6"
- Φ15×72×7"
REMARK
u-bolt
hyundai
model :HD 5T U-BOLT (F)
no.
- 1-020-4
- 1-020-5
- 1-020-6
DIMENSIONS
- Φ15×72×5"
- Φ15×72×6"
- Φ15×72×7"
REMARK
u-bolt
hyundai
model :5T U-BOLT (R)
no.
- 1-022
- 1-023
- 1-024
- 1-025
- 1-025-1
- 1-025-2
- 1-025-3
DIMENSIONS
- Φ18×74×14"
- Φ18×74×15"
- Φ18×74×16"
- Φ18×74×17"
- Φ18×74×18"
- Φ18×74×19"
- Φ18×75×20"
REMARK
u-bolt
hyundai
model : 5T U-BOLT (R) SPECIAL
no.
- 1-022-1
- 1-023-1
- 1-024-1
- 1-025-0
- 1-025-1-1
- 1-025-2-1
- 1-025-3-1
DIMENSIONS
- Φ18×74×14"
- Φ18×74×15"
- Φ18×74×16"
- Φ18×74×17"
- Φ18×74×18"
- Φ18×74×19"
- Φ18×75×20"
REMARK
u-bolt
hyundai
model : 5T DECK U-BOLT
no.
- 1-026
- 1-027
- 1-028
- 1-029
- 1-030
- 1-031
- 1-032
- 1-032-1
DIMENSIONS
- Φ15×88×11"
- Φ15×88×12"
- Φ15×88×13"
- Φ15×88×14"
- Φ15×88×15"
- Φ15×88×16"
- Φ15×88×17"
- Φ15×88×18"
REMARK
u-bolt
hyundai
model : MIGHTY U-BOLT (F)
no.
- 2-033
- 2-034
DIMENSIONS
- Φ14×72×4.5"
- Φ14×72×5.5"
REMARK
- 54225-5H901
- 54225-5A200
u-bolt
hyundai
model : MIGHTY U-BOLT (R)
no.
- 2-036-1
- 2-036-2
- 2-036
- 2-037
- 2-038
- 2-039
- 2-040
DIMENSIONS
- Φ15×75×10"
- Φ15×75×11"
- Φ15×75×12"
- Φ15×75×13"
- Φ15×75×14"
- Φ15×75×15"
- Φ15×75×16"
REMARK
- 55225-5K500
- 55225-5K000
u-bolt
hyundai
model : E-MIGHTY U-BOLT (F)
no.
- 2-034-6
DIMENSIONS
- Φ16×73×5.5"
REMARK
u-bolt
hyundai
model : E-MIGHTY U-BOLT (R)
no.
- 2-034-6
DIMENSIONS
- 2-036-02
- 2-036-03
- 2-036-04
REMARK
- Φ16×73×12"
- Φ16×73×13"
- Φ16×73×14"
u-bolt
hyundai
model : E-MIGHTY NEW U-BOLT (F)
no.
- 2-033-02
- 2-033-03
DIMENSIONS
- Φ15×73×140㎜
- Φ15×73×160㎜
REMARK
- 2.5T, 3.5T
- PUBLIC
u-bolt
hyundai
model : E-MIGHTY NEW U-BOLT (R)
no.
- 2-033-05
- 2-033-04
- 2-033-06
DIMENSIONS
- Φ16×73×12"
- Φ16×73×13"
- Φ16×73×14"
REMARK
- 2.5T, 3.5T
- PUBLIC
u-bolt
hyundai
model : MIGHTY DECK U-BOLT
no.
- 2-045-5
- 2-041
- 2-042
- 2-043
- 2-044
DIMENSIONS
- Φ16×75×9"
- Φ16×75×10"
- Φ16×75×11"
- Φ16×75×12"
- Φ16×75×13"
REMARK
u-bolt
hyundai
model : MIGHTY DECK U-BOLT
no.
- 2-045
- 2-045-1
- 2-045-2
- 2-045-3
- 2-045-4
DIMENSIONS
- Φ16×75×14"
- Φ16×75×15"
- Φ16×75×16"
- Φ16×75×17"
- Φ16×75×18"
REMARK
u-bolt
hyundai
model : MIGHTY2 NEW U-BOLT (R)
no.
- 2-036-1
- 2-037-1
DIMENSIONS
- Φ18×73×12"
- Φ18×73×13"
REMARK
u-bolt
hyundai
model : PORTER U-BOLT (R)
no.
- 2-046
- 2-047
DIMENSIONS
- Φ11×76×7"
- Φ11×76×8"
REMARK
u-bolt
hyundai
model : PORTER2 U-BOLT (R)
no.
- 3-043-1
- 3-037-2
- 3-037-3
DIMENSIONS
- Φ13×77×8"
- Φ13×77×9"
- Φ13×77×9.5"
REMARK
- LIVERO (R)
u-bolt
hyundai
model : LIBERO U-BOLT (R)
no.
- 3-043-2
- 3-043-4
DIMENSIONS
- Φ13×77×8"
- Φ13×77×9"
REMARK
u-bolt
hyundai
model : HD 3T U-BOLT (F)
no.
- 2-048
DIMENSIONS
REMARK
u-bolt
hyundai
model : HD 3T U-BOLT (R)
no.
- 2-049
- 2-050
- 2-051
- 2-052
- 2-053
- 2-054
- 2-055
DIMENSIONS
- Φ15×12"
- Φ15×13"
- Φ15×14"
- Φ15×15"
- Φ15×16"
- Φ15×17"
- Φ15×18"
REMARK
u-bolt
hyundai
model : GRACE U-BOLT (R)
no.
- 2-057
- 2-057-2
DIMENSIONS
- Φ11×78×6"
- Φ11×78×7"
REMARK
- 185mm
u-bolt
hyundai
model : 520 U-BOLT (F)
no.
- 2-058-1
- 2-058
- 2-058-4
DIMENSIONS
- Φ20×92×6"
- Φ20×92×7"
- Φ20×92×9"
REMARK
- 5422577100
u-bolt
hyundai
model : 520 U-BOLT (F) SPECIAL
no.
- 2-058-2
DIMENSIONS
- Φ20×92×7"
REMARK
u-bolt
hyundai
model : 520 U-BOLT (R) SPECIAL
no.
- 2-059-1
- 2-059-2
- 2-059
- 2-030
- 2-031
- 2-032
DIMENSIONS
- Φ22×103×11"
- Φ22×103×12"
- Φ22×103×13"
- Φ22×103×14"
- Φ22×103×15"
- Φ22×103×16"
REMARK
- 552258A710
- 5522586032
u-bolt
hyundai
model : HD CHASSIS U-BOLT (R)
no.
- 3-036
- 3-037
- 3-038
- 3-039
- 3-040
- 3-040-1
- 3-040-2
DIMENSIONS
- Φ24×92×14"
- Φ24×92×15"
- Φ24×92×16"
- Φ24×92×17"
- Φ24×92×18"
- Φ24×92×19"
- Φ24×92×20"
REMARK
u-bolt
hyundai
model : AEROTOWN U-BOLT (F)
no.
- 3-040-3
DIMENSIONS
- 3-040-3 Φ15×72×6"
REMARK
u-bolt
hyundai
model : AEROTOWN U-BOLT (F) SPECIAL
no.
- 3-040-4
DIMENSIONS
- 3-040-3 Φ15×72×6"
REMARK
u-bolt
hyundai
model : AEROTOWN U-BOLT (R)
no.
- 3-041
- 3-042
- 3-042-9
- 3-043
- 3-043-3
DIMENSIONS
- Φ20×83×11"
- Φ20×83×12"
- Φ20×83×13"
- Φ20×83×14"
- Φ20×83×15"
REMARK
u-bolt
hyundai
model : AEROTOWN U-BOLT (R) SPECIAL
no.
- 3-041-1
- 3-042-1
- 3-042-10
- 3-043-0
- 3-043-3-1
DIMENSIONS
- Φ20×83×11"
- Φ20×83×12"
- Φ20×83×13"
- Φ20×83×14"
- Φ20×83×15"
REMARK
u-bolt
hyundai
model : HD 24T TRAGO U-BOLT (F) SPECIAL
no.
- 3-043-6
- 3-043-7
- 3-043-8
- 3-043-9
- 3-043-10
- 3-043-11
- 3-043-12
- 3-043-14
DIMENSIONS
- Φ22×102×8"
- Φ22×102×8.5"
- Φ22×102×9"
- Φ22×102×9.5"
- Φ22×102×10"
- Φ22×102×10.5"
- Φ22×102×11"
- Φ22×102×12"
REMARK
- CARGO
u-bolt
hyundai
model : HD 24T TRAGO U-BOLT (R) SPECIAL
no.
- 3-043-21
- 3-043-15
- 3-043-17
- 3-043-19
DIMENSIONS
- Φ20×92×10"
- Φ20×92×11"
- Φ20×92×12"
- Φ20×92×13"
REMARK
- K552257M001
u-bolt
hyundai
model : XCIENT 15T U-BOLT (F) SPECIAL
no.
- 3-044-4
- 3-044-5
- 3-044-6
DIMENSIONS
- Φ22×102×8"
- Φ22×102×8.5"
- Φ22×102×9"
REMARK
u-bolt
hyundai
model : XCIENT 27T U-BOLT (F) SPECIAL
no.
- 3-044
- 3-044-1
- 3-044-2
- 3-044-3
DIMENSIONS
- Φ24×102×9"
- Φ24×102×9.5"
- Φ24×102×10"
- Φ24×102×12"
REMARK
u-bolt
hyundai
model : MEGA 5T NEW U-BOLT (F)
no.
- 3-050
- 3-051
DIMENSIONS
- Φ15×73×6.5"
- Φ15×73×7.5"
REMARK
- 165mm
- 190mm
u-bolt
hyundai
model : 3AXLES 5T U-BOLT SPECIAL
no.
- 3-054
DIMENSIONS
- Φ22×73×255㎜
REMARK
u-bolt
hyundai
model : MEGA 3AXLES 5T U-BOLT SPECIAL
no.
- 3-053
DIMENSIONS
- Φ20×126×275㎜
REMARK
- IN WIDTH 126mm
u-bolt
hyundai
model : MEGA 7T U-BOLT (R) SPECIAL
no.
- 3-052
DIMENSIONS
- Φ24×90×22㎜
REMARK
- IN WIDTH 90mm
u-bolt
hyundai
model : STAREX U-BOLT
no.
- 3-045
DIMENSIONS
REMARK
- 185㎜
u-bolt
hyundai

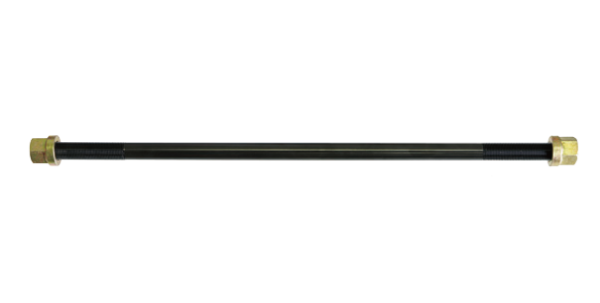

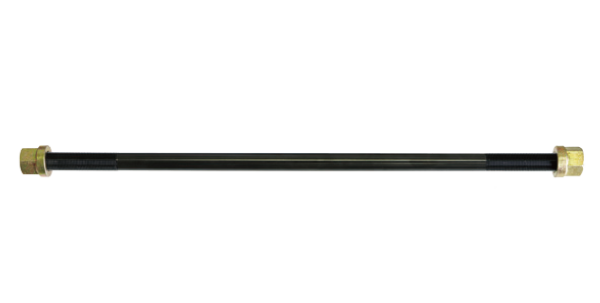

model : HD DECK STUD BOLT
no.
- 3-046-4
- 3-046-5
DIMENSIONS
- Φ18×585㎜
- Φ18×600㎜
REMARK
u-bolt
hyundai
model : HD DECK STUD BOLT SPECIAL
no.
- 3-046-1
- 3-046-2
DIMENSIONS
- Φ18×90×585㎜
- Φ18×90×600㎜
REMARK
u-bolt
hyundai
model : POWERTEC 3AXLES U-BOLT (R) SPECIAL
no.
- 3-047
DIMENSIONS
REMARK
- 15"
u-bolt
hyundai
model : EG 8T U-BOLT (R) SPECIAL
no.
- 3-048
DIMENSIONS
REMARK
- 19"
