u-bolt


u-bolt

DAEWOO

model : DAEWOO 15T U-BOLT (F)

  • no.

  • 13-242
  • 13-243
  • 13-244
  • 13-245
  • 13-246
  • 13-246-1
  • DIMENSIONS

  • Φ22×92×8"
  • Φ22×92×9"
  • Φ22×92×10"
  • Φ22×92×11"
  • Φ22×92×12"
  • Φ22×92×13"
  • REMARK

  • 3421300440

u-bolt

DAEWOO

model : DAEWOO 15T U-BOLT (F) SPECIAL

  • no.

  • 13-247
  • 13-248
  • 13-249
  • 13-250
  • 13-251
  • 13-251-1
  • 13-251-2
  • DIMENSIONS

  • Φ22×92×8"
  • Φ22×92×9"
  • Φ22×92×10"
  • Φ22×92×11"
  • Φ22×92×12"
  • Φ22×92×13"
  • Φ22×92×14"
  • REMARK

u-bolt

DAEWOO

model : DAEWOO 15T U-BOLT (R) SPECIAL

  • no.

  • 13-252
  • 13-252-1
  • 13-253
  • DIMENSIONS

  • Φ27×92×13"
  • Φ27×92×14"
  • Φ27×92×15"
  • REMARK

  • NEW (R) 370
  • NEW (R) 380

u-bolt

DAEWOO

model : DW NEW U-BOLT (R) SPECIAL

  • no.

  • 1-011-1
  • 1-012-1
  • DIMENSIONS

  • Φ27×92×14"
  • Φ27×92×15"
  • REMARK

  • 355mm, 360mm

u-bolt

DAEWOO

model : DW NEW 23T U-BOLT (R) SPECIAL

  • no.

  • 13-254
  • 13-254-1
  • DIMENSIONS

  • Φ27×102×360㎜
  • Φ27×102×380㎜
  • REMARK

u-bolt

DAEWOO

model : DW NEW 24T U-BOLT (F)

  • no.

  • 13-300-1
  • 13-301-1
  • 13-302-1
  • DIMENSIONS

  • Φ22×11"
  • Φ22×12"
  • Φ22×13"
  • REMARK

u-bolt

DAEWOO

model :DW NEW 24T U-BOLT (F) SPECIAL

  • no.

  • 13-300
  • 13-301
  • 13-302
  • DIMENSIONS

  • Φ22×11"
  • Φ22×12"
  • Φ22×13"
  • REMARK

u-bolt

DAEWOO

model :DW NEW 24T U-BOLT (R) SPECIAL

  • no.

  • 13-255-3
  • 13-255-2
  • 13-255
  • DIMENSIONS

  • Φ27×93×400㎜
  • Φ27×93×430㎜
  • Φ27×93×445㎜
  • REMARK

u-bolt

DAEWOO

model : BS105 U-BOLT (F)

  • no.

  • 13-259
  • 13-260
  • 13-261
  • DIMENSIONS

  • Φ22×92×6"
  • Φ22×92×7"
  • Φ22×92×8"
  • REMARK

  • BS106

u-bolt

DAEWOO

model :BS105 U-BOLT (F) SPECIAL

  • no.

  • 13-259-1
  • 13-260-1
  • 13-261-1
  • DIMENSIONS

  • Φ22×92×6"
  • Φ22×92×7"
  • Φ22×92×8"
  • REMARK

u-bolt

DAEWOO

model :BS105 U-BOLT (R)

  • no.

  • 13-262-1
  • 13-263-1
  • 13-264-1
  • DIMENSIONS

  • Φ28×102×13"
  • Φ28×102×14"
  • Φ28×102×15"
  • REMARK

  • BS106

u-bolt

DAEWOO

model : BS105 U-BOLT (R) SPECIAL

  • no.

  • 13-262
  • 13-263
  • 13-264
  • DIMENSIONS

  • Φ28×102×13"
  • Φ28×102×14"
  • Φ28×102×15"
  • REMARK

u-bolt

DAEWOO

model :CH U-BOLT (F)

  • no.

  • 13-265
  • 13-266
  • 13-267
  • 13-268
  • 13-269
  • DIMENSIONS

  • Φ22×82×8"
  • Φ22×82×9"
  • Φ22×82×10"
  • Φ22×82×11"
  • Φ22×82×12"
  • REMARK

  • SAEHAN (F)

u-bolt

DAEWOO

model :CH U-BOLT (F) SPECIAL

  • no.

  • 13-270
  • 13-271
  • 13-272
  • 13-273
  • 14-274
  • DIMENSIONS

  • Φ22×82×8"
  • Φ22×82×9"
  • Φ22×82×10"
  • Φ22×82×11"
  • Φ22×82×12"
  • REMARK

u-bolt

DAEWOO

model : CH U-BOLT (R)

  • no.

  • 14-275
  • 14-276
  • 14-277
  • 14-278
  • 14-279
  • DIMENSIONS

  • Φ25×100×13"
  • Φ25×100×14"
  • Φ25×100×15"
  • Φ25×100×16"
  • Φ25×100×17"
  • REMARK

  • 8T (R)

u-bolt

DAEWOO

model : CH U-BOLT (R)

  • no.

  • 14-280
  • 14-281
  • 14-282
  • 14-283
  • DIMENSIONS

  • Φ25×100×18"
  • Φ25×100×19"
  • Φ25×100×20"
  • Φ25×100×21"
  • REMARK

  • 3421300110

u-bolt

DAEWOO

model : CH DECK U-BOLT

  • no.

  • 14-284
  • 14-285
  • 14-286
  • 14-287
  • 14-288
  • DIMENSIONS

  • Φ18×102×16"
  • Φ18×102×17"
  • Φ18×102×18"
  • Φ18×102×19"
  • Φ18×102×20"
  • REMARK

  • SAEHAN, 8T

u-bolt

DAEWOO

model : CH DECK U-BOLT

  • no.

  • 14-289
  • 14-290
  • 14-291
  • 14-292
  • 14-293
  • DIMENSIONS

  • Φ18×102×21"
  • Φ18×102×22"
  • Φ18×102×23"
  • Φ18×102×24"
  • Φ18×102×25"
  • REMARK

u-bolt

DAEWOO

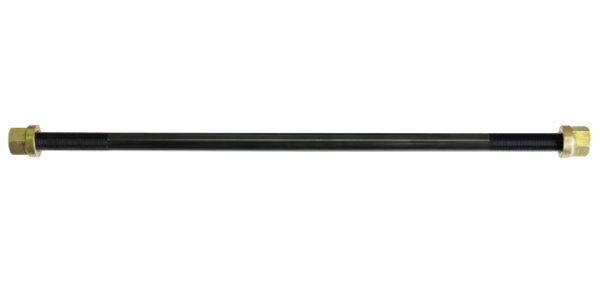

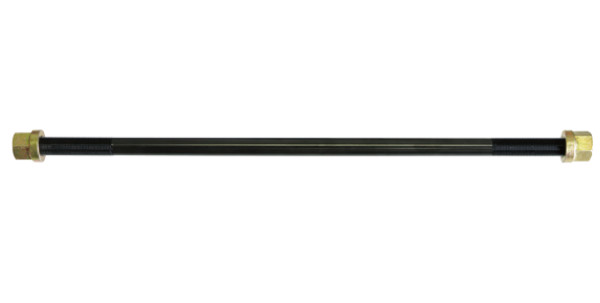

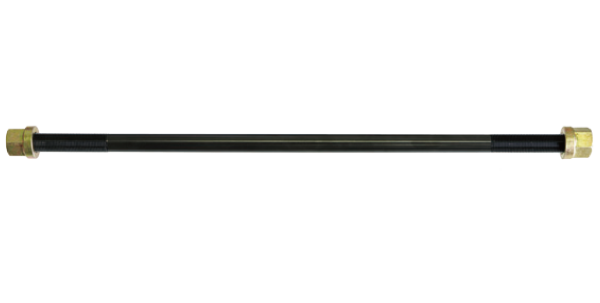

model : DW DECK STUD BOLT

  • no.

  • 14-296-1
  • 14-296-12
  • 14-296-18
  • 14-296-13
  • 14-296-5
  • DIMENSIONS

  • Φ18×420㎜
  • Φ18×430㎜
  • Φ18×450㎜
  • Φ18×460㎜
  • Φ18×500㎜
  • REMARK

u-bolt

DAEWOO

model : DW DECK STUD BOLT

  • no.

  • 14-296-15
  • 14-296-14
  • 14-296-20
  • 14-296-11
  • 14-296-2
  • DIMENSIONS

  • Φ18×102×520㎜
    Φ18×102×530㎜
    Φ18×102×540㎜
    Φ18×102×550㎜
    Φ18×102×560㎜
  • REMARK

u-bolt

DAEWOO

model : DW DECK STUD BOLT

  • no.

  • 14-296-3
    14-296-21
    14-296
    14-296-8
    14-296-7
    14-296-6
  • DIMENSIONS

  • Φ18×102×580㎜
    Φ18×102×585㎜
    Φ18×102×600㎜
    Φ18×102×710㎜
    Φ18×102×730㎜
    Φ18×102×740㎜
  • REMARK

u-bolt

DAEWOO

model : DW ULTRA U-BOLT (R) SPECIAL

  • no.

  • 14-297-5
  • DIMENSIONS

  • Φ18×102×19"
  • REMARK

u-bolt

DAEWOO

model :NOVUS 5T U-BOLT (F)

  • no.

  • 14-298-0
    14-298-1-1
    14-298-2-1
  • DIMENSIONS

  • Φ16×73×8"
    Φ16×73×9"
    Φ16×73×10"
  • REMARK

u-bolt

DAEWOO

model : NOVUS 5T U-BOLT (F) SPECIAL

  • no.

  • 14-298
    14-298-1
    14-298-2
  • DIMENSIONS

  • Φ16×73×8"
    Φ16×73×9"
    Φ16×73×10"
  • REMARK

u-bolt

DAEWOO

model : NOVUS 5T U-BOLT (R)

  • no.

  • 14-298-3-1
    14-298-4-1
    14-298-5-1
    14-298-6-1
    14-298-7-1
    14-298-8-1
    14-298-9-1
  • DIMENSIONS

  • Φ18×82×15"
    Φ18×82×16"
    Φ18×82×17"
    Φ18×82×18"
    Φ18×82×19"
    Φ18×82×20"
    Φ18×82×21"
  • REMARK

u-bolt

DAEWOO

model :NOVUS 5T U-BOLT (R) SPECIAL

  • no.

  • 14-298-3
    14-298-4
    14-298-5
    14-298-6
    14-298-7
    14-298-8
    14-298-9
  • DIMENSIONS

  • Φ18×82×15"
    Φ18×82×16"
    Φ18×82×17"
    Φ18×82×18"
    Φ18×82×19"
    Φ18×82×20"
    Φ18×82×21"
  • REMARK

u-bolt

DAEWOO

model : NOVUS 5T DECK U-BOLT

  • no.

  • 14-298-9-2
    14-298-9-4
  • DIMENSIONS

  • Φ18×80×14"
    Φ18×80×16"
  • REMARK

u-bolt

DAEWOO

model : PRIMA 5T U-BOLT (R)

  • no.

  • 14-320
    14-321
    14-322
  • DIMENSIONS

  • Φ18×80×15"
    Φ18×80×16"
    Φ18×80×17"
  • REMARK

u-bolt

DAEWOO

model :EURO4 NEW U-BOLT (F) SPECICAL

  • no.

  • 14-299
    14-299-1
  • DIMENSIONS

  • Φ22×102×6.5"
    Φ22×102×6.5"
  • REMARK

u-bolt

DAEWOO

model : EURO4 U-BOLT (F)SPECIAL

  • no.

  • 14-300-2
    14-300-1
    14-300
    14-301
    14-302
  • DIMENSIONS

  • Φ22×102×9"
    Φ22×102×10"
    Φ22×102×11"
    Φ22×102×12"
    Φ22×102×13"
  • REMARK

u-bolt

DAEWOO

model : EURO4 U-BOLT (R) SPECIAL

  • no.

  • 14-303
    14-304
    14-305
    14-306
  • DIMENSIONS

  • Φ22×92×11"
    Φ22×92×12"
    Φ22×92×13"
    Φ22×92×14"
  • REMARK

u-bolt

DAEWOO

model : DW CHASSIS U-BOLT (R)

  • no.

  • 13-256
    13-256-1
    13-256-2
    13-256-3
  • DIMENSIONS

  • Φ18×14"
    Φ18×15"
    Φ18×16"
    Φ18×17"
  • REMARK
