u-bolt


u-bolt

hyundai

model : HD U-BOLT (F)

  • no.

  • 1-001
  • 1-001-1
  • 1-002
  • 1-003
  • 1-004
  • 1-005
  • DIMENSIONS

  • Φ20×92×8"
  • Φ20×92×8.5"
  • Φ20×92×9"
  • Φ20×92×10"
  • Φ20×92×11"
  • Φ20×92×12"
  • REMARK

  • GRANTO

u-bolt

hyundai

model : HD U-BOLT (F) SPECIAL

  • no.

  • 1-006
  • 1-007
  • 1-008
  • 1-009
  • 1-010
  • 1-010
  • 1-010-1
  • DIMENSIONS

  • Φ20×92×8"
  • Φ20×92×8.5"
  • Φ20×92×9"
  • Φ20×92×10"
  • Φ20×92×11"
  • Φ20×92×12"
  • Φ20×92×13"
  • REMARK

u-bolt

hyundai

model : HD U-BOLT (R)

  • no.

  • 1-011
  • 1-012
  • 1-014-1
  • 1-014-2
  • 1-014-3
  • 1-014-4
  • 1-014-5
  • DIMENSIONS

  • Φ27×93×14"
  • Φ27×93×15"
  • Φ27×93×400
  • Φ27×93×420
  • Φ27×93×430
  • Φ27×93×440
  • Φ27×93×450
  • REMARK

  • 55225-75801

u-bolt

hyundai

model : 91A U-BOLT (R)

  • no.

  • 1-013
  • 1-015-1
  • 1-015-2
  • DIMENSIONS

  • Φ27×93×14.5"
  • Φ27×93×340
  • Φ27×93×350
  • REMARK

  • 370mm

u-bolt

hyundai

model : HD 8.5T U-BOLT (R)

  • no.

  • 1-016
  • 1-017
  • 1-017-6
  • 1-017-2
  • 1-017-5
  • 1-017-7
  • 1-017-3
  • DIMENSIONS

  • Φ24×92×19"
  • Φ24×92×20"
  • Φ24×92×21"
  • Φ24×92×21.5"
  • Φ24×92×22"
  • Φ24×92×23"
  • Φ24×92×23.5"
  • REMARK

u-bolt

hyundai

model : HD 9.5T U-BOLT (R)

  • no.

  • 1-018-2
  • 1-018
  • 1-019-3
  • DIMENSIONS

  • Φ27×93×12"
  • Φ27×93×13"
  • Φ27×93×15.5"
  • REMARK

u-bolt

hyundai

model :POWERTEC U-BOLT (R)

  • no.

  • 1-018-2
  • 1-019-3
  • DIMENSIONS

  • Φ27×93×12"
  • Φ27×93×15.5"
  • REMARK

u-bolt

hyundai

model :SL U-BOLT (F)

  • no.

  • 1-019-3
  • 1-019-1
  • 1-019-4
  • DIMENSIONS

  • Φ22×92×11"
  • Φ22×92×12"
  • Φ22×92×13"
  • REMARK

u-bolt

hyundai

model :SL U-BOLT (R) SPECIAL

  • no.

  • 1-019
  • 1-019-2
  • DIMENSIONS

  • Φ22×92×11"
  • Φ22×92×12"
  • REMARK

u-bolt

hyundai

model :HD 23T U-BOLT (F)

  • no.

  • 1-019-3
  • 1-019-1
  • 1-019-4
  • DIMENSIONS

  • Φ22×92×11"
  • Φ22×92×12"
  • Φ22×92×13"
  • REMARK

u-bolt

hyundai

model :HD 23T U-BOLT (F) SPECIAL

  • no.

  • 1-019
  • 1-019-2
  • DIMENSIONS

  • Φ22×92×11"
  • Φ22×92×12"
  • REMARK

u-bolt

hyundai

model :HD 5T U-BOLT (F)

  • no.

  • 1-020-1
  • 1-021
  • 1-020-3
  • DIMENSIONS

  • Φ15×72×5"
  • Φ15×72×6"
  • Φ15×72×7"
  • REMARK

u-bolt

hyundai

model :HD 5T U-BOLT (F)

  • no.

  • 1-020-4
  • 1-020-5
  • 1-020-6
  • DIMENSIONS

  • Φ15×72×5"
  • Φ15×72×6"
  • Φ15×72×7"
  • REMARK

u-bolt

hyundai

model :5T U-BOLT (R)

  • no.

  • 1-022
  • 1-023
  • 1-024
  • 1-025
  • 1-025-1
  • 1-025-2
  • 1-025-3
  • DIMENSIONS

  • Φ18×74×14"
  • Φ18×74×15"
  • Φ18×74×16"
  • Φ18×74×17"
  • Φ18×74×18"
  • Φ18×74×19"
  • Φ18×75×20"
  • REMARK

u-bolt

hyundai

model : 5T U-BOLT (R) SPECIAL

  • no.

  • 1-022-1
  • 1-023-1
  • 1-024-1
  • 1-025-0
  • 1-025-1-1
  • 1-025-2-1
  • 1-025-3-1
  • DIMENSIONS

  • Φ18×74×14"
  • Φ18×74×15"
  • Φ18×74×16"
  • Φ18×74×17"
  • Φ18×74×18"
  • Φ18×74×19"
  • Φ18×75×20"
  • REMARK

u-bolt

hyundai

model : 5T DECK U-BOLT

  • no.

  • 1-026
  • 1-027
  • 1-028
  • 1-029
  • 1-030
  • 1-031
  • 1-032
  • 1-032-1
  • DIMENSIONS

  • Φ15×88×11"
  • Φ15×88×12"
  • Φ15×88×13"
  • Φ15×88×14"
  • Φ15×88×15"
  • Φ15×88×16"
  • Φ15×88×17"
  • Φ15×88×18"
  • REMARK

u-bolt

hyundai

model : MIGHTY U-BOLT (F)

  • no.

  • 2-033
  • 2-034
  • DIMENSIONS

  • Φ14×72×4.5"
  • Φ14×72×5.5"
  • REMARK

  • 54225-5H901
  • 54225-5A200

u-bolt

hyundai

model : MIGHTY U-BOLT (R)

  • no.

  • 2-036-1
  • 2-036-2
  • 2-036
  • 2-037
  • 2-038
  • 2-039
  • 2-040
  • DIMENSIONS

  • Φ15×75×10"
  • Φ15×75×11"
  • Φ15×75×12"
  • Φ15×75×13"
  • Φ15×75×14"
  • Φ15×75×15"
  • Φ15×75×16"
  • REMARK

  • 55225-5K500
  • 55225-5K000

u-bolt

hyundai

model : E-MIGHTY U-BOLT (F)

  • no.

  • 2-034-6
  • DIMENSIONS

  • Φ16×73×5.5"
  • REMARK

u-bolt

hyundai

model : E-MIGHTY U-BOLT (R)

  • no.

  • 2-034-6
  • DIMENSIONS

  • 2-036-02
  • 2-036-03
  • 2-036-04
  • REMARK

  • Φ16×73×12"
  • Φ16×73×13"
  • Φ16×73×14"

u-bolt

hyundai

model : E-MIGHTY NEW U-BOLT (F)

  • no.

  • 2-033-02
  • 2-033-03
  • DIMENSIONS

  • Φ15×73×140㎜
  • Φ15×73×160㎜
  • REMARK

  • 2.5T, 3.5T
  • PUBLIC

u-bolt

hyundai

model : E-MIGHTY NEW U-BOLT (R)

  • no.

  • 2-033-05
  • 2-033-04
  • 2-033-06
  • DIMENSIONS

  • Φ16×73×12"
  • Φ16×73×13"
  • Φ16×73×14"
  • REMARK

  • 2.5T, 3.5T
  • PUBLIC

u-bolt

hyundai

model : MIGHTY DECK U-BOLT

  • no.

  • 2-045-5
  • 2-041
  • 2-042
  • 2-043
  • 2-044
  • DIMENSIONS

  • Φ16×75×9"
  • Φ16×75×10"
  • Φ16×75×11"
  • Φ16×75×12"
  • Φ16×75×13"
  • REMARK

u-bolt

hyundai

model : MIGHTY DECK U-BOLT

  • no.

  • 2-045
  • 2-045-1
  • 2-045-2
  • 2-045-3
  • 2-045-4
  • DIMENSIONS

  • Φ16×75×14"
  • Φ16×75×15"
  • Φ16×75×16"
  • Φ16×75×17"
  • Φ16×75×18"
  • REMARK

u-bolt

hyundai

model : MIGHTY2 NEW U-BOLT (R)

  • no.

  • 2-036-1
  • 2-037-1
  • DIMENSIONS

  • Φ18×73×12"
  • Φ18×73×13"
  • REMARK

u-bolt

hyundai

model : PORTER U-BOLT (R)

  • no.

  • 2-046
  • 2-047
  • DIMENSIONS

  • Φ11×76×7"
  • Φ11×76×8"
  • REMARK

u-bolt

hyundai

model : PORTER2 U-BOLT (R)

  • no.

  • 3-043-1
  • 3-037-2
  • 3-037-3
  • DIMENSIONS

  • Φ13×77×8"
  • Φ13×77×9"
  • Φ13×77×9.5"
  • REMARK

  • LIVERO (R)

u-bolt

hyundai

model : LIBERO U-BOLT (R)

  • no.

  • 3-043-2
  • 3-043-4
  • DIMENSIONS

  • Φ13×77×8"
  • Φ13×77×9"
  • REMARK

u-bolt

hyundai

model : HD 3T U-BOLT (F)

  • no.

  • 2-048
  • DIMENSIONS

  • REMARK

u-bolt

hyundai

model : HD 3T U-BOLT (R)

  • no.

  • 2-049
  • 2-050
  • 2-051
  • 2-052
  • 2-053
  • 2-054
  • 2-055
  • DIMENSIONS

  • Φ15×12"
  • Φ15×13"
  • Φ15×14"
  • Φ15×15"
  • Φ15×16"
  • Φ15×17"
  • Φ15×18"
  • REMARK

u-bolt

hyundai

model : GRACE U-BOLT (R)

  • no.

  • 2-057
  • 2-057-2
  • DIMENSIONS

  • Φ11×78×6"
  • Φ11×78×7"
  • REMARK

  • 185mm

u-bolt

hyundai

model : 520 U-BOLT (F)

  • no.

  • 2-058-1
  • 2-058
  • 2-058-4
  • DIMENSIONS

  • Φ20×92×6"
  • Φ20×92×7"
  • Φ20×92×9"
  • REMARK

  • 5422577100

u-bolt

hyundai

model : 520 U-BOLT (F) SPECIAL

  • no.

  • 2-058-2
  • DIMENSIONS

  • Φ20×92×7"
  • REMARK

u-bolt

hyundai

model : 520 U-BOLT (R) SPECIAL

  • no.

  • 2-059-1
  • 2-059-2
  • 2-059
  • 2-030
  • 2-031
  • 2-032
  • DIMENSIONS

  • Φ22×103×11"
  • Φ22×103×12"
  • Φ22×103×13"
  • Φ22×103×14"
  • Φ22×103×15"
  • Φ22×103×16"
  • REMARK

  • 552258A710
  • 5522586032

u-bolt

hyundai

model : HD CHASSIS U-BOLT (R)

  • no.

  • 3-036
  • 3-037
  • 3-038
  • 3-039
  • 3-040
  • 3-040-1
  • 3-040-2
  • DIMENSIONS

  • Φ24×92×14"
  • Φ24×92×15"
  • Φ24×92×16"
  • Φ24×92×17"
  • Φ24×92×18"
  • Φ24×92×19"
  • Φ24×92×20"
  • REMARK

u-bolt

hyundai

model : AEROTOWN U-BOLT (F)

  • no.

  • 3-040-3
  • DIMENSIONS

  • 3-040-3 Φ15×72×6"
  • REMARK

u-bolt

hyundai

model : AEROTOWN U-BOLT (F) SPECIAL

  • no.

  • 3-040-4
  • DIMENSIONS

  • 3-040-3 Φ15×72×6"
  • REMARK

u-bolt

hyundai

model : AEROTOWN U-BOLT (R)

  • no.

  • 3-041
  • 3-042
  • 3-042-9
  • 3-043
  • 3-043-3
  • DIMENSIONS

  • Φ20×83×11"
  • Φ20×83×12"
  • Φ20×83×13"
  • Φ20×83×14"
  • Φ20×83×15"
  • REMARK

u-bolt

hyundai

model : AEROTOWN U-BOLT (R) SPECIAL

  • no.

  • 3-041-1
  • 3-042-1
  • 3-042-10
  • 3-043-0
  • 3-043-3-1
  • DIMENSIONS

  • Φ20×83×11"
  • Φ20×83×12"
  • Φ20×83×13"
  • Φ20×83×14"
  • Φ20×83×15"
  • REMARK

u-bolt

hyundai

model : HD 24T TRAGO U-BOLT (F) SPECIAL

  • no.

  • 3-043-6
  • 3-043-7
  • 3-043-8
  • 3-043-9
  • 3-043-10
  • 3-043-11
  • 3-043-12
  • 3-043-14
  • DIMENSIONS

  • Φ22×102×8"
  • Φ22×102×8.5"
  • Φ22×102×9"
  • Φ22×102×9.5"
  • Φ22×102×10"
  • Φ22×102×10.5"
  • Φ22×102×11"
  • Φ22×102×12"
  • REMARK

  • CARGO

u-bolt

hyundai

model : HD 24T TRAGO U-BOLT (R) SPECIAL

  • no.

  • 3-043-21
  • 3-043-15
  • 3-043-17
  • 3-043-19
  • DIMENSIONS

  • Φ20×92×10"
  • Φ20×92×11"
  • Φ20×92×12"
  • Φ20×92×13"
  • REMARK

  • K552257M001

u-bolt

hyundai

model : XCIENT 15T U-BOLT (F) SPECIAL

  • no.

  • 3-044-4
  • 3-044-5
  • 3-044-6
  • DIMENSIONS

  • Φ22×102×8"
  • Φ22×102×8.5"
  • Φ22×102×9"
  • REMARK

u-bolt

hyundai

model : XCIENT 27T U-BOLT (F) SPECIAL

  • no.

  • 3-044
  • 3-044-1
  • 3-044-2
  • 3-044-3
  • DIMENSIONS

  • Φ24×102×9"
  • Φ24×102×9.5"
  • Φ24×102×10"
  • Φ24×102×12"
  • REMARK

u-bolt

hyundai

model : MEGA 5T NEW U-BOLT (F)

  • no.

  • 3-050
  • 3-051
  • DIMENSIONS

  • Φ15×73×6.5"
  • Φ15×73×7.5"
  • REMARK

  • 165mm
  • 190mm

u-bolt

hyundai

model : 3AXLES 5T U-BOLT SPECIAL

  • no.

  • 3-054
  • DIMENSIONS

  • Φ22×73×255㎜
  • REMARK

u-bolt

hyundai

model : MEGA 3AXLES 5T U-BOLT SPECIAL

  • no.

  • 3-053
  • DIMENSIONS

  • Φ20×126×275㎜
  • REMARK

  • IN WIDTH 126mm

u-bolt

hyundai

model : MEGA 7T U-BOLT (R) SPECIAL

  • no.

  • 3-052
  • DIMENSIONS

  • Φ24×90×22㎜
  • REMARK

  • IN WIDTH 90mm

u-bolt

hyundai

model : STAREX U-BOLT

  • no.

  • 3-045
  • DIMENSIONS

  • REMARK

  • 185㎜

u-bolt

hyundai

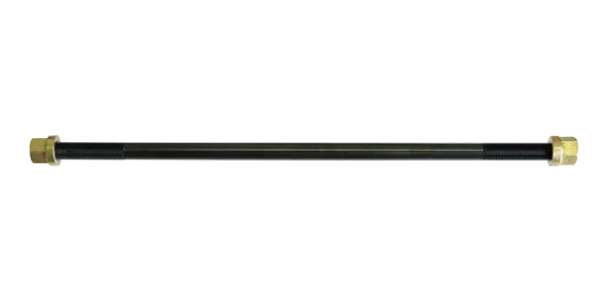

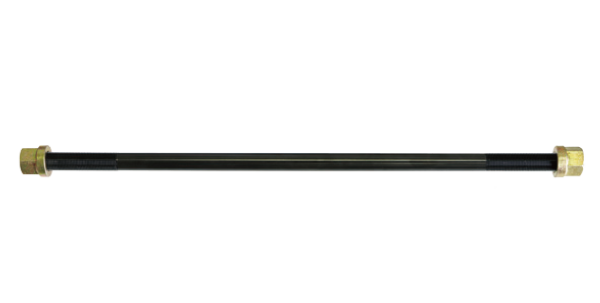

model : HD DECK STUD BOLT

  • no.

  • 3-046-4
  • 3-046-5
  • DIMENSIONS

  • Φ18×585㎜
  • Φ18×600㎜
  • REMARK

u-bolt

hyundai

model : HD DECK STUD BOLT SPECIAL

  • no.

  • 3-046-1
  • 3-046-2
  • DIMENSIONS

  • Φ18×90×585㎜
  • Φ18×90×600㎜
  • REMARK

u-bolt

hyundai

model : POWERTEC 3AXLES U-BOLT (R) SPECIAL

  • no.

  • 3-047
  • DIMENSIONS

  • REMARK

  • 15"

u-bolt

hyundai

model : EG 8T U-BOLT (R) SPECIAL

  • no.

  • 3-048
  • DIMENSIONS

  • REMARK

  • 19"
